This article talks about the great and the awful with respect to Schmitt Trigger RC oscillators. These oscillators are particularly essential since they are available in the inward oscillator in numerous well known MCUs
Figure 1. RC Schmitt trigger oscillator
T=RCln(VHigh−VT−VHigh−VT+×VT+VT−)
Equation 1. The period of the output signal.
f=1RCln(VHigh−VT−VHigh−VT+×VT+VT−)
Equation 2. The general equation for frequency.
These conditions expect a great deal of advantageous parameter esteems, and they're not totally precise. For instance, the high yield voltage isn't really the supply voltage. The Schmitt Trigger edge voltage esteems may differ from maker to producer. Along these lines, there are constantly additional contemplations required with planning a RC Oscillator.
An extraordinary Schmitt Trigger Door Will Do
The ln part of the period and recurrence conditions is a consistent that relies upon the limit voltages. Limit voltages are particular to the specific coordinated circuit utilized. Thus, whatever steady that shows up in the period and recurrence conditions shifts from chip to chip.
In addition, the datasheet of either the Schmitt Trigger inverter or door will build up a scope of conceivable qualities for VT+
furthermore, VT−
, regularly contained inside a base and most extreme indicated esteems. An average esteem may likewise be determined, however there are no assurances on the genuine limits your chip will have, other than being inside the base and greatest. Shockingly, this part is out of your control.
The 74LS14 Schmitt Trigger Entryway IC
An exceptionally well known Schmitt Trigger door IC in the TTL LS family is the 74LS14, which is an arrangement of six inverters, with edge voltages underneath 2.5V (which is a large portion of the supply voltage). The issue lies in the release stage (low heartbeat width), which takes any longer than the charging stage (high heartbeat width). This happens in light of the fact that the charge stage is arranged to reach from VT−
to VDD
. This is a substantially more noteworthy starting voltage distinction than that of the release stage, which is VT+
. Figure 2 demonstrates the circumstance graphically:
 |

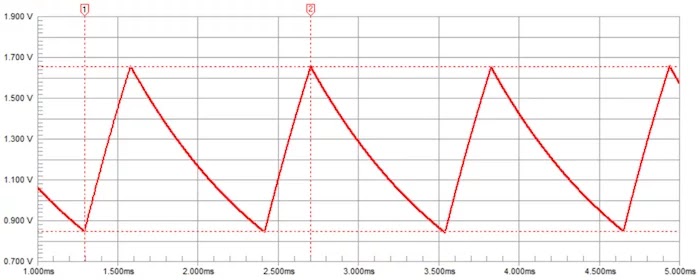

Figure 2. Capacitor voltage of a 74LS14-based RC oscillator. For this gate,
VT+
is 1.66V, and
VT−
is 0.84V.
|
4093B CMOS Integrated Circuit
Another well known alternative is the 4093B CMOS coordinated circuit, which has limit voltages considerably nearer to the coveted symmetrical edges setup. Figure 3 demonstrates the same graphical circumstance for the 4093B:
 |
Figure 3. Capacitor voltage of a 4093B-based RC oscillator. For this gate,
VT+
is 3.3V, and
VT−
is 1.65V.
Since the 4093B is a two-input NAND, it can go about as the first inverter when the other info is high. This gives the circuit the element of an empower input line. At whatever point this empower line is high, the circuit will yield the clock flag, and when it isn't, a settled high esteem.
Figure 4. RC oscillator with the 4093B CMOS quad NAND integrated circuit.
In Figure 4, the additional information is utilized as an empower line. Note that the sit without moving state in the yield is high.
TTL versus CMOS
Another explanation behind utilizing the 4093B IC rather than the 74LS14 is their usage innovation. TTL doors are made with BJTs, and in spite of the variation utilized as a part of the LS family is gone for low power, their info impedance isn't great. These entryways can have an info present as high as 1mA and as low as 0.1mA.
CMOS entryways, then again, are made with MOSFETs, which have an amazingly high info impedance—constantly higher than 10MΩ
. This outcomes in input streams dependably lower than 100nA.
The issue with this parameter (input impedance) is that it affects how exact the arrangement demonstrate is for the RC charge/release circuit. Having lower input impedances makes a more perceptible load impact on the RC circuit, and a more proper model for it would need to represent that lower input impedance.
A ramifications of utilizing TTL ICs for a RC oscillator is that the estimation of R is restricted to littler qualities, regularly under 2kω
. This powers planners to utilize greater capacitors to accomplish bring down frequencies.
Regardless, a CMOS door does not have this issue.
The Yield Will Scarcely Be Rectangular
The yield voltage delivered by the first oscillator isn't precisely a rectangular wave. The slant unmistakable in the low and high states is an impact of the simple idea of the input circle.
Keep in mind that the capacitor is drawing current from the door's abnormal state yield, and giving current to the entryway's low-level yield. The reason for the slant is the yield impedance of the entryway.
Rationale entryways are for the most part expected to give their yields to computerized inputs, not to control expending components, so the yield impedance in these gadgets isn't too low. Therefore, the voltage estimated at the yield stick is the expected yield less the voltage drop in the arrangement Thevenin yield resistor. This present resistor's voltage is corresponding to the present, which is evolving. Figure 5 demonstrates this circumstance.
Figure 5. The effects of a considerable output resistance.
The entryway in the figure above is displayed as a square wave generator with a resistor in arrangement, appeared inside the shaded zone. The perfect yield flag (Vout) is estimated at the yield of the generator, before the voltage drop in the yield resistor, and it's appeared as red in the plot. The real voltage in the yield stick (Vpin) is appeared as blue in the plot. Notice how the in a perfect world rectangular flag (red) is distorted in both the high and low levels (blue).
The issue caused by the yield obstruction is twofold: to begin with, it influences the charge and release times, and second, the yield flag isn't rectangular.
Expounding on the primary issue, the yield obstruction causes the yield stick voltage to have a lower abnormal state voltage and a higher low-level voltage. This implies the charge and release conditions won't be extremely precise after all in light of the fact that the voltage contrasts will really be littler. A basic answer for this error is to take in the estimation of the yield obstruction from the datasheet and add it to the estimation of R.
RC→(Rout+R)×C
With respect to the second issue, having a non-rectangular flag isn't normally terrible for a computerized input. Be that as it may, associating whatever else to the yield will affect the conduct of the oscillator in light of the fact that the yield will be additionally stacked. A decent practice is to leave the swaying part to itself and recover that flag with one of the rest of the doors in the incorporated circuit. This is done basically to recover the yield motion for whatever advanced circuit should utilize it.
On account of a NAND oscillator, this second inverter stage will likewise leave the "sit still" state as low rather than high. In this way, contingent upon the fashioner's inclination, another inverter might be required. Figure 6 demonstrates a circuit with every one of the enhancements said.
Figure 6. A practical 4093B Schmitt Trigger RC oscillator with an output suitable for feeding into digital inputs, and a low idle state.
The 555 Timer
The 555 clock is by a long shot the most prominent simple coordinated circuit for producing low-recurrence clock signals with unobtrusive prerequisites.
The standard of activity for a 555 clock as an astable multivibrator may be, generally, the same as the Schmitt Trigger RC Oscillator's since it keeps up a capacitor's voltage between two levels, normally 1/3 and 2/3 of VDD separately.
The 555 clock's astable circuit can just create signals with an obligation cycle more noteworthy than half. In any case, it is conceivable to achieve any obligation cycle with a few alterations. Similarly, the Schmitt Trigger RC oscillator creates signals with some settled obligation cycle (half for symmetrical hysteresis) yet can be adjusted to produce pretty much any obligation cycle. Rectifiers normally do the trap for the two circuits.
Figure 7. RC oscillator with separate charging and discharging resistors.
Notice how Figure 7 demonstrates the capacitor charges through Rc and releases through Rd. This isolates the control of th and tl for producing any obligation cycle. In this circuit, the NAND door actualizes a solitary information inverter.
Likewise, changing the beat width while keeping the period steady is required for beat width balance. This can be accomplished by the two circuits utilizing a potentiometer where the resistors are.
Figure 8. A PWM generator implemented with an RC oscillator.
Notice that in Figure 8, the potentiometer goes about as both the charge and the release resistors in the past circuit. The two settled resistors must have an opposition that yields the base wanted estimation of th and tl separately. These resistors are required in light of the fact that setting the potentiometer at either end would make the RC circuit's successful opposition too low (only the yield obstruction of the entryway in addition to the diode's forward opposition), which may make the door's yield current approach it's greatest rating.
Conclusion
The exact plan of a RC oscillator relies upon a progression of parameters particular to the segments exhibit in the usage. Be that as it may, the hardware is simple to the point that the mistakes in their outline can be overwhelmed by experimentation. For instance, if the estimations of R and C might be set by the disentangled conditions, at that point the subsequent recurrence can be trimmed by fluctuating the obstruction or capacitance. As a matter of fact, a trimming potentiometer is frequently used to tweak the created recurrence.
With regards to an astable multivibrator (producing a clock motion with humble recurrence exactness), the 555 clock doesn't offer a sensational preferred standpoint over the exceptionally basic Schmitt Trigger oscillator.
|
